Style

PN Master

Cbl Dia.

Slot Width

Round

Square

Round

Square

Rect

Push-Thru

Color

Solid

1461020

.060-.145

A-E

.205

.205x.205

.330

.330x.330

.260x.330

.240 taper

0-11

SolidRib

1461040

.146-.250

A-E

.310

.310x.310

.440

.438x.438

.368x.438

.345 taper

0-11

UniFlex

1461060

.251-.400

A-E

.460

.460x.460

.651

.632x.632

.532x.632

.495 taper

0-11

MultiFlex

1461080

.401-.550

A-E

.610

.610x.610

.863

.782x.782

.682x.782

.645 taper

0-11

.551-.750

A-E

.810

.810x.810

1.150

.984x.984

.884x.984

.845 taper

0-11

SQUARE

Dim A

Dim B

Slot shape Dim "C"

Inner flange shape Dim " D and E "

Rib Style

PN Master

Cbl Dia.

Slot Width

Round

Square

Round

Square

Rect

Push-Thru

Color

Solid

1463020

.060-.145

A-E

.205

.205x.205

.330

.330x.330

.260x.330

.240 taper

0-11

SolidRib

1463040

.146-.250

A-E

.310

.310x.310

.440

.438x.438

.368x.438

.345 taper

0-11

UniFlex

1463060

.251-.400

A-E

.460

.460x.460

.651

.632x.632

.532x.632

.495 taper

0-11

MultiFlex

1463080

.401-.550

A-E

.610

.610x.610

.863

.782x.782

.682x.782

.645 taper

0-11

.551-.750

A-E

.810

.810x.810

1.150

.984x.984

.884x.984

.845 taper

0-11

RECTANGULAR

Dim A

Dim B

Slot shape Dim "C"

Inner flange shape Dim " D and E "

Rib Style

PN Master

Cbl Dia.

Slot Width

Round

Square

Round

Square

Rect

Push-Thru

Color

Solid

1465020

.060-.145

A-E

.205

.205x.205

.330

.330x.330

.260x.330

.240 taper

0-11

SolidRib

1465040

.146-.250

A-E

.310

.310x.310

.440

.438x.438

.368x.438

.345 taper

0-11

UniFlex

1465060

.251-.400

A-E

.460

.460x.460

.651

.632x.632

.532x.632

.495 taper

0-11

MultiFlex

1465080

.401-.550

A-E

.610

.610x.610

.863

.782x.782

.682x.782

.645 taper

0-11

.551-.750

A-E

.810

.810x.810

1.150

.984x.984

.884x.984

.845 taper

0-11

OVAL

Dim A

Dim B

Slot shape Dim "C"

Inner flange shape Dim " D and E "

Rib Style

PN Master

Cbl Dia.

Slot Width

Round

Square

Round

Square

Rect

Push-Thru

Color

Solid

1467020

.060-.145

A-E

.205

.205x.205

.330

.330x.330

.260x.330

.240 taper

0-11

SolidRib

1467040

.146-.250

A-E

.310

.310x.310

.440

.438x.438

.368x.438

.345 taper

0-11

UniFlex

1467060

.251-.400

A-E

.460

.460x.460

.651

.632x.632

.532x.632

.495 taper

0-11

MultiFlex

1467080

.401-.550

A-E

.610

.610x.610

.863

.782x.782

.682x.782

.645 taper

0-11

.551-.750

A-E

.810

.810x.810

1.150

.984x.984

.884x.984

.845 taper

0-11

 ROUND

 Dim A

 Dim B

 Slot shape Dim "C"

 Inner flange shape Dim " D and E "

BODY STYLE

3D  ONLINE  strain reliefs

Price and Delivery Information   All parts are ROHS

Click here for STANDARD "ON- the shelf" strain relief's.

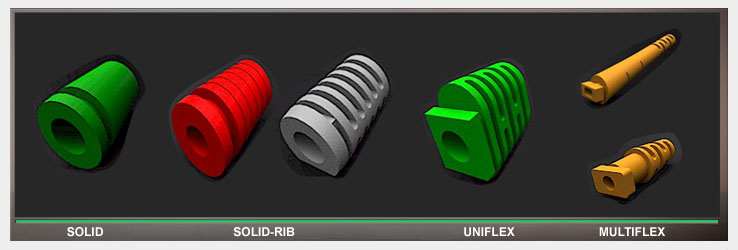

SOLID

SOLID-RIB

UNIFLEX

 MULTIFLEX

* STANDARD SLOT WIDTHS ARE::     "A"  . 047    "B" . 062    "C" . 078    "D" . 093    "E" .125

COLORS   0-BLK  1-BRN   2-RED   3-ORG   4-YEL  5-GRN   6-BLU   7-PUR   8-LT GRY  9-DK GRY  10-WHT  11-BEIGE

RoHS cert  Material Specification
